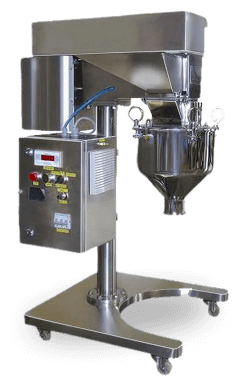

The Multimill is a versatile, self-contained, and portable unit designed for high-speed granulating, pulverizing, mixing, shredding, and chopping of a wide variety of wet and dry materials. It delivers efficient performance across multiple applications—without the need for additional attachments—making it ideal for pharmaceutical, chemical, and food processing industries.
Working Principle
The principle involves variable force, rotating blades having both knife and sharp edges with validated screen size to reduce particles in a controlled manner. The mechanism involves the pulverization process (Pulverization is the grinding and crushing of materials into small particles). knife blades are used to cut the large particles into small size particles, that are generated during the FBD drying process. The hummer process is also used to break large particles into small sizes.
Speed Ranges of Multimill:
Multimill has a wide range of options for speeds to run. It can be operated from 720 to 2880 RPM (also depending on the make).
Features of Multimill:
All parts of the mill are made of S.S. 304/S.S. 316 grade.
Hopper inlet:
The hopper is used to feed products to the mill.
Milling chamber:
The milling chamber contains a screen to reduce particle size, and twelve milling and cutting edge blades and two scraper blades are responsible for milling.
Discharge point (chute):
These components are used for the collection of milled products.
Mechanical chamber and electrical chamber:
This section is used to install all mechanical components like Gear, motor, moving belts, and electrical components like wiring, switches, and MCVs.
Technical Specification
| Model | Output KGs/Hr. | Rotor Speed | Motor HP |
|---|---|---|---|
| SPE - MML - 1 HP | 0 - 100KGs/Hr. | 0 - 2800 RPM | 1 HP |
| SPE - MML - 3HP | 0 - 250KGs/Hr. | 0 - 2800 RPM | 3 HP |
| SPE - MML - 5HP | 0 - 500KGs/Hr. | 0 - 2800 RPM | 5 HP |
| SPE - MML - 7.5HP | 0 - 750KGs/Hr. | 0 - 2800 RPM | 7.5 HP |
