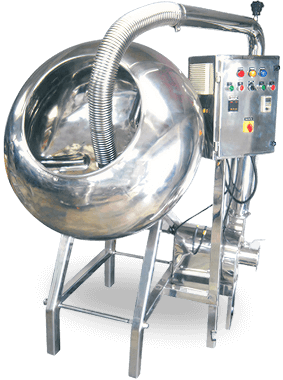

A coating pan is a pharmaceutical processing machine used to coat tablets, pills, or granules with a thin layer of film, sugar, or enteric coating. It is widely used in the pharmaceutical, nutraceutical, confectionery, and chemical industries for functional and aesthetic coating of solid dosage forms.
Working Principle
Tablets are placed in a rotating stainless steel pan mounted on a shaft. As the pan rotates, coating solution is sprayed onto the tumbling tablets through a spray gun. Simultaneously, hot air is introduced through a perforated duct to evaporate the solvent and dry the coating evenly.
Applications
Features:
Advantages:
Coating Pan:
SS316 pan with smooth finish and curved profile for uniform tumbling.
Drive System:
Motor and gearbox for controlled pan rotation.
Hot Air Blower:
Supplies heated air for quick solvent evaporation.
Spray System:
Atomizing spray gun for accurate coating solution application.
Exhaust System:
Removes moisture and maintains internal air flow.
Control Panel:
Manual or PLC-based controls for temperature, speed, and spray timing.
Optional Attachments:
Spray gun with peristaltic pump, flameproof motor and controls, dust extraction, auto loading/unloading system.
Technical Specification
| Model | Load Capacity | Drive Motor | RPM of Pan | Hot Air Blower Motor | Blower Capacity (Max CFM) | Heater (KW) |
|---|---|---|---|---|---|---|
| SPE-24 | 25 KGS | 0.5 HP | 12/24 | 0.50 HP | 100 | 1.5 KW |
| SPE-36 | 60–80 KGS | 1 HP | 12/36 | 0.50 HP | 200 | 3 KW |
| SPE-48 | 100–120 KGS | 2 HP | 12/30 | 1.00 HP | 500 | 4.5 KW |
| SPE-72 | 200–250 KGS | 7.5 HP | 5/10 | 1.00 HP | 750 | 6 KW |
